istioctl 安装集成配置 Jarger
前言
- 这教程是istio的Jarger的配置, 是istio写的Jarger配置文件, 不是Jarger官网的配置, 它是比较好集成了Jarger, 当然也只是简单的配置, 不包括性能和安全性问题
- 适用于使用Jarger搭配istio
- istio有helm和istioctl安装方式, 这里使用istioctl安装istio, 理由是比较简单安装
安装
https://istio.io/latest/zh/docs/setup/install/istioctl/
配置
- 修改github的配置文件, 把
ClusterIP替换为NodePort, 启用Web UI
apiVersion: apps/v1
kind: Deployment
metadata:
name: jaeger
namespace: istio-system
labels:
app: jaeger
spec:
selector:
matchLabels:
app: jaeger
template:
metadata:
labels:
app: jaeger
sidecar.istio.io/inject: "false"
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "14269"
spec:
containers:
- name: jaeger
image: "docker.io/jaegertracing/all-in-one:1.46"
env:
- name: BADGER_EPHEMERAL
value: "false"
- name: SPAN_STORAGE_TYPE
value: "badger"
- name: BADGER_DIRECTORY_VALUE
value: "/badger/data"
- name: BADGER_DIRECTORY_KEY
value: "/badger/key"
- name: COLLECTOR_ZIPKIN_HOST_PORT
value: ":9411"
- name: MEMORY_MAX_TRACES
value: "50000"
- name: QUERY_BASE_PATH
value: /jaeger
livenessProbe:
httpGet:
path: /
port: 14269
readinessProbe:
httpGet:
path: /
port: 14269
volumeMounts:
- name: data
mountPath: /badger
resources:
requests:
cpu: 10m
volumes:
- name: data
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: tracing
namespace: istio-system
labels:
app: jaeger
spec:
type: ClusterIP
ports:
- name: http-query
port: 80
protocol: TCP
targetPort: 16686
# Note: Change port name if you add '--query.grpc.tls.enabled=true'
- name: grpc-query
port: 16685
protocol: TCP
targetPort: 16685
selector:
app: jaeger
---
# Jaeger implements the Zipkin API. To support swapping out the tracing backend, we use a Service named Zipkin.
apiVersion: v1
kind: Service
metadata:
labels:
name: zipkin
name: zipkin
namespace: istio-system
spec:
ports:
- port: 9411
targetPort: 9411
name: http-query
selector:
app: jaeger
---
apiVersion: v1
kind: Service
metadata:
name: jaeger-collector
namespace: istio-system
labels:
app: jaeger
spec:
type: ClusterIP
ports:
- name: jaeger-collector-http
port: 14268
targetPort: 14268
protocol: TCP
- name: jaeger-collector-grpc
port: 14250
targetPort: 14250
protocol: TCP
- port: 9411
targetPort: 9411
name: http-zipkin
- port: 4317
name: grpc-otel
- port: 4318
name: http-otel
selector:
app: jaeger测试

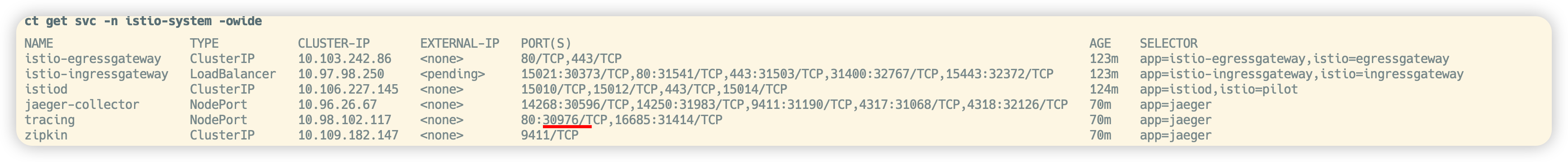

查看Web UI的端口, 假设istio安装在istio-system这个命名空间:
kubectl get svc -n istio-system -owide

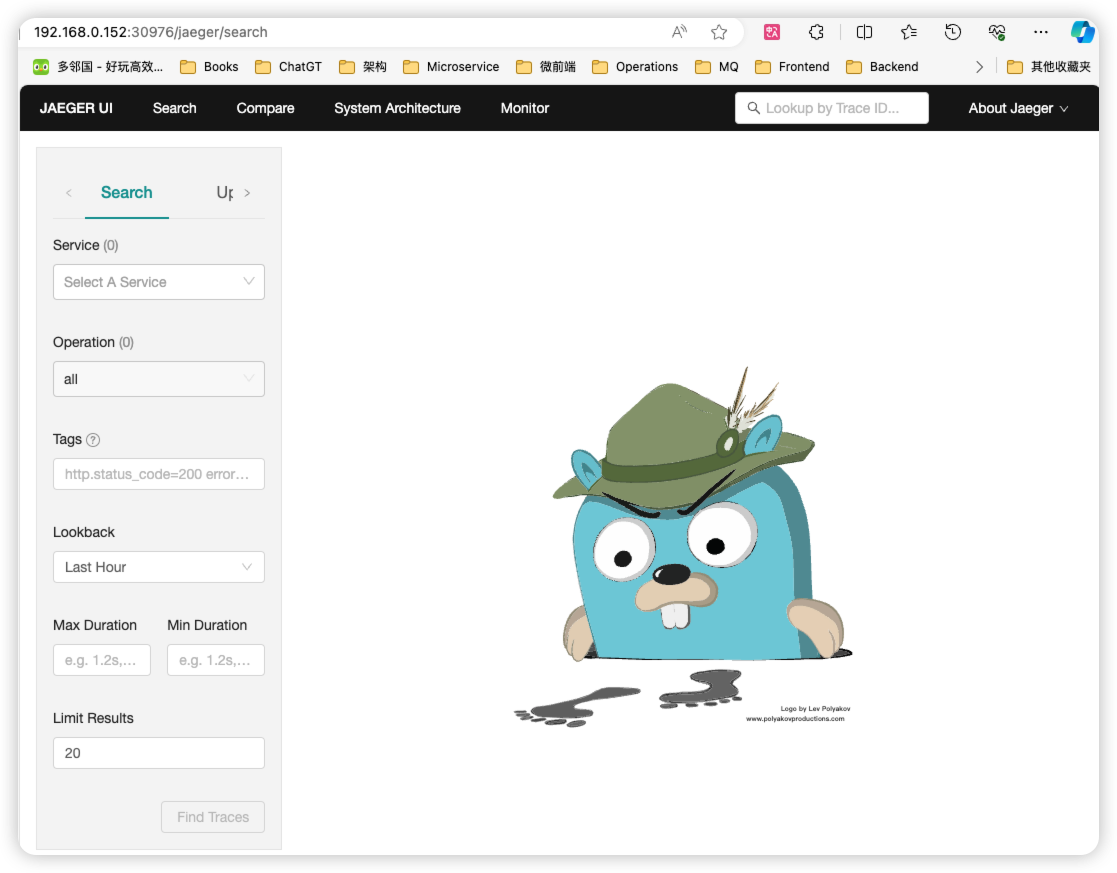

Web UI的端口为30976, 浏览器访问即可:
